JBC Havya Sistemleri

Elektrik Pompalı DDSE Tamir İstasyonuStok No : DDSE

Teslim süresi, stok durumu ve fiyat bilgisi için
+90 (0312) 394 79 20 telefon numarasını arayabilir, elkatek@elkatek.com.tr iletişim mail adresine eposta gönderebilirsiniz.

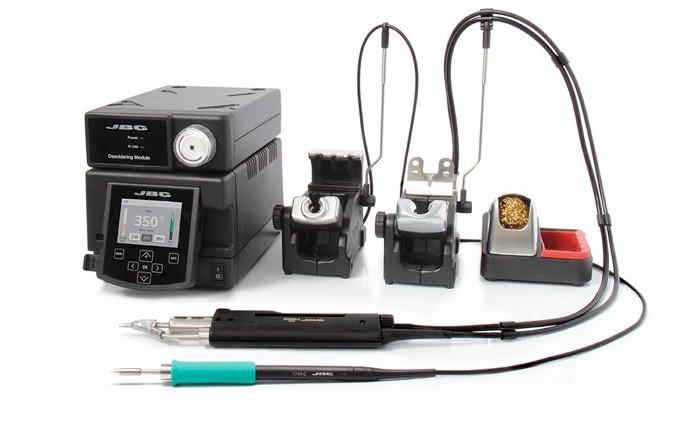

A complete solution for fast and safe PCB repair. The DDE 2 Tools Control Unit manages the tip temperature and the MSE Electric Desoldering Module sucks the solder. It works with the JBC exclusive heating system and the intelligent sleep & hibernation modes. It features all the Excellence range benefits such as station customization, full control of soldering processes and remote work management. Although the unit is compatible with any JBC tool, the DDSE works simultaneously with the DR560 Desoldering Iron and the T245 Handle.

Product Composition

Control Unit: DDE, MSE-A
Stands: CL9885, AD-SD, DR-SD
Tools: T245-C Soft Thermal Insulator Handle, DR560-A Desoldering Iron
Cartridges: C245903, C245906, C560003

Specifications

Weight 10.2 kg (22.5 lb)
Dimensions See individual modules
Voltage(AC) 120V / 230V / 100V
Input fuse 4A / 2A / 5A
Output peak power 150W per tool
Temperature selection 90-450 ºC (190-840 ºF)
Idle temp. stability (still air) ±1.5 ºC (±3 ºF)
Tip to ground resistance <2 ohms
Tip to ground voltage <2 mV RMS
Ambient operating temp. 10-40 ºC (50-104 ºF)
Communication connectors USB-A / USB-B / Peripherals
Robot connector RJ12 for RS-232 protocol
Vacuum (MSE-A) 75% / 570mmHg / 22.4inHg
Flow rate (MSE-A) 9 SLPM
ESD safe
Package weight 10.2 kg (22.4 lb)
Package dimensions 475 x 370 x 195 mm
